Aron Insinga aki at insinga.com
Mon Jul 15 11:44:37 AEST 2024


On 7/14/24 14:02, John Levine wrote:
> According to Aron Insinga<aki at insinga.com>:
>> On 7/13/24 19:46, John Levine wrote:
>>> I looked at the manual and I think he's misreading it. The "words" in
>>> question are the tokens in the macro definition. ...
>> Possibly, but they use 'syllables' for tokens (symbols or integers), and
>> they say here that they advance the location counter after each word
>> copied.  If they were copying characters into the input stream, they
>> would not be incrementing the location counter ('.') after each word
>> transferred.
> If you really want to know what it did, here's the internals manual.
> The description of the macro facility starts on page 19 and it is
> quite clear that they're storing a tokenized version of the macros, so
> they're not copying characters, but they're not just copying assembled
> instructions either.
>
> https://bitsavers.org/pdf/dec/pdp1/F36P_PDP1_Macro_Internals.pdf

Thank you!!  I found the PDP-1 and TX-0 MACRO sources and was sadly
unsurprised by the lack of comments, so they are difficult reading.

    http://www.bitsavers.org/bits/DEC/pdp1/papertapeImages/20040106/macro_6-63/_text/part2.txt

They are not storing tokens.  In fact, the list of 'codes' for items
stored as the macro body on p 20 is:
     a storage word,
     a dummy symbol specification.
     a constant,
     a dummy symbol parameter assignment, or
     an end marker.
So it is not storing tokens for instructions, just storage words
(instructions or data) as mentioned in the user manual.

In the discussion in the internals manual, after the paragraph
mentioning the year this was designed (a nice touch), they say that they
are storing the macro body as 'partially assembled' 'words' into which
the dummy symbols are 'inserted'.  (And in a single-address architecture
with a small memory address, addition is enough to do that insertion.)

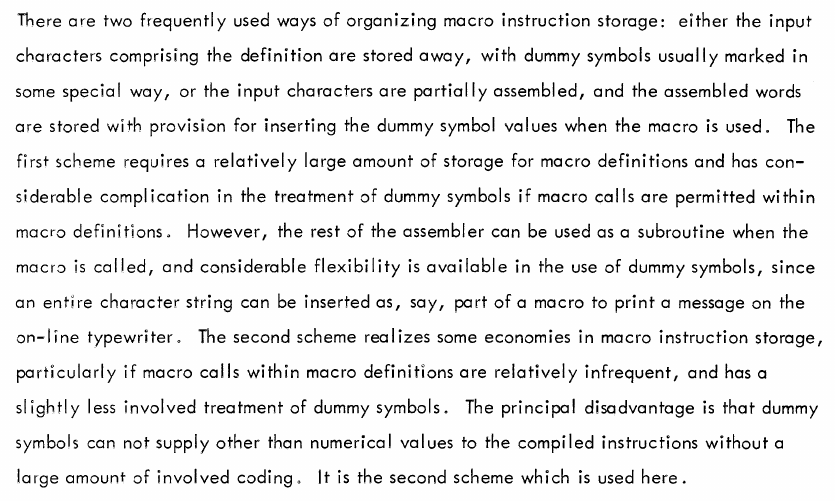

They explain why they did this instead of storing characters:

They do not look at the opcode as I suggested was possible, they have a
more general solution that works for a word containing either code or data.

I think that this may be (at least as far as any of us know) a unique
case from the early days of computing where, on the TX-0 and a port to
the PDP-1, a macro body *is* stored as a list of 'machine words' instead
of source text.  The macro  body is not manipulated as a 'higher-level
construct', it is just used for quite limited macro expansion.

This has NO bearing on what DEC/HP/VSI did more than two decades later
for the Alpha, Itanic, and x86_64 (where macros are expanded by the
conventional insertion of characters from the macro body into the source
text stream).

- Aron
